扣丁學堂區塊鏈開發技術之探究比特幣交易簽名

2018-08-14 10:48:46 1562瀏覽

隨著區塊鏈概念理論的不斷成熟以及強勁技術的不斷深耕，區塊鏈已經成為投資圈中備受關注的熱點，從區塊鏈1.0時代落地數字貨幣比特幣、萊特幣等，打開了區塊鏈通向新彎道的高速路口，到區塊鏈2.0時代開始通過智能合約來解決貨幣支付難題，再到3.0時代區塊鏈嘗試向各傳統行業發力，今天扣丁學堂區塊鏈培訓技術給大家介紹一下關于比特幣探究之交易創建詳解，下面我們一起來看一下吧。

首先在交易創建的最后，需要進行一個交易簽名操作。它其實就是交易發起方要提供一個證據，證明自己可以花費這項交易的每一筆輸入，也就是說提供的簽名scriptSig，能夠跟prevOut的scriptPubKey運算，只要最終返回結果是TRUE，就能證明交易的合法性。比特幣網絡上的其他節點，也是通過這樣一個過程來進行交易驗證，確認OK之后，交易才會放入交易池，等待打包。

比特幣交易創建函數CreateTransaction的最后，調用了如下代碼來對交易進行簽名:

const CScript& scriptPubKey = coin.txout.scriptPubKey;
SignatureData sigdata;
if (!ProduceSignature(*this,
                      MutableTransactionSignatureCreator(&txNew, nIn, coin.txout.nValue, SIGHASH_ALL),
                      scriptPubKey, sigdata))
{
    strFailReason = _("Signing transaction failed");
    return false;
} else {
    UpdateInput(txNew.vin.at(nIn), sigdata);
}

這里的ProduceSignature函數，內部流程也比較復雜。當然它的復雜，來源于簽名機制的復雜。為了幫助理解，我畫了一個簡要流程圖。

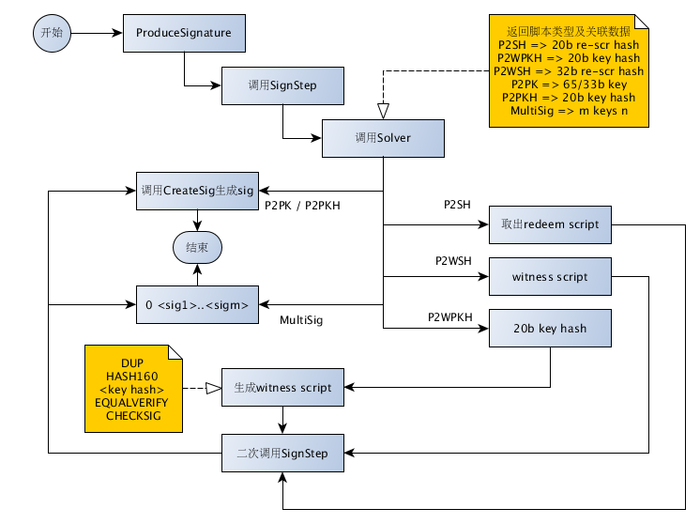

交易簽名流程圖

先從末端起，自底向上，理解下面幾個函數。

首先是MutableTransactionSignatureCreator.CreateSig函數，顧名思義就是對CMutableTransaction進行簽名。它定義在src/script/sign.cpp中。源碼如下：

bool MutableTransactionSignatureCreator::CreateSig(const SigningProvider& provider,
    std::vector<unsigned char>& vchSig, const CKeyID& address,
    const CScript& scriptCode, SigVersion sigversion) const
{
    CKey key;
    if (!provider.GetKey(address, key))
        return false;
    //見證腳本必須是壓縮版
    if (sigversion == SigVersion::WITNESS_V0 && !key.IsCompressed())
        return false;
    //生成交易哈希，用于簽名
    uint256 hash = SignatureHash(scriptCode, *txTo, nIn, nHashType, amount, sigversion);
    if (!key.Sign(hash, vchSig))  //使用ECDSA橢圓曲線加密算法進行簽名
        return false;
    vchSig.push_back((unsigned char)nHashType);
    return true;
}

CKey.Sign函數邏輯很簡單，這里就不貼了。SignatureHash函數是根據交易信息生成哈希值，主要源碼如下(涉及隔離見證部分可參見比特幣探究之隔離見證那篇文章)：

template <class T>
uint256 SignatureHash(const CScript& scriptCode, const T& txTo, unsigned int nIn, int nHashType,
    const CAmount& amount, SigVersion sigversion, const PrecomputedTransactionData* cache)
{
    if (sigversion == SigVersion::WITNESS_V0) {  //如果是隔離見證，根據BIP-143的規定簡化簽名內容
        uint256 hashPrevouts, hashSequence, hashOutputs;
        const bool cacheready = cache && cache->ready;
        //非任何人可付，為所有PrevOut的哈希，否則全0
        if (!(nHashType & SIGHASH_ANYONECANPAY)) {
            hashPrevouts = cacheready ? cache->hashPrevouts : GetPrevoutHash(txTo);
        }
        //非任何人可付，不是SINGLE或NONE，為所有序列號哈希，否則全0
        if (!(nHashType & SIGHASH_ANYONECANPAY) && (nHashType & 0x1f) != SIGHASH_SINGLE
                                                && (nHashType & 0x1f) != SIGHASH_NONE) {
            hashSequence = cacheready ? cache->hashSequence : GetSequenceHash(txTo);
        }
        if ((nHashType & 0x1f) != SIGHASH_SINGLE && (nHashType & 0x1f) != SIGHASH_NONE) {
            //非SINGLE和NONE，為所有輸出的哈希
            hashOutputs = cacheready ? cache->hashOutputs : GetOutputsHash(txTo);
        } else if ((nHashType & 0x1f) == SIGHASH_SINGLE && nIn < txTo.vout.size()) {
            //如果是SINGLE，為同一序列號輸出的哈希。其他情況全0
            CHashWriter ss(SER_GETHASH, 0);
            ss << txTo.vout[nIn];
            hashOutputs = ss.GetHash();
        }

        CHashWriter ss(SER_GETHASH, 0);
        ss << txTo.nVersion;
        ss << hashPrevouts;
        ss << hashSequence;
        ss << txTo.vin[nIn].prevout;
        ss << scriptCode;
        ss << amount;
        ss << txTo.vin[nIn].nSequence;
        ss << hashOutputs;
        ss << txTo.nLockTime;
        ss << nHashType;

        return ss.GetHash();
    }

    //如果不是隔離見證，調用Serializer輸出哈希，根據所有的輸入輸出計算得出，其復雜度高于隔離見證版
    CTransactionSignatureSerializer<T> txTmp(txTo, scriptCode, nIn, nHashType);
    CHashWriter ss(SER_GETHASH, 0);
    ss << txTmp << nHashType;
    return ss.GetHash();
}

接著看Solver函數。它根據傳入的scriptPubKey，判斷交易輸出類型(P2PKH、P2SH、P2WPKH或P2WSH)，并返回相應的數據(參見交易簽名流程圖)。該函數定義在src/script/standard.cpp中。源碼如下：

bool Solver(const CScript& scriptPubKey, txnouttype& typeRet,
            std::vector<std::vector<unsigned char> >& vSolutionsRet)
{
    vSolutionsRet.clear();

    //P2SH類型，格式為 OP_HASH160 20 [20 byte hash] OP_EQUAL
    if (scriptPubKey.IsPayToScriptHash())
    {
        typeRet = TX_SCRIPTHASH;
        std::vector<unsigned char> hashBytes(scriptPubKey.begin()+2, scriptPubKey.begin()+22);
        //返回20字節的Redeem Script（贖回腳本）的Hash
        vSolutionsRet.push_back(hashBytes);
        return true;
    }

    int witnessversion;
    std::vector<unsigned char> witnessprogram;
    //如果采用了隔離見證，那應該是[見證版本] [見證程序]的格式
    if (scriptPubKey.IsWitnessProgram(witnessversion, witnessprogram)) {
        //長度20，說明是P2WPKH
        if (witnessversion == 0 && witnessprogram.size() == WITNESS_V0_KEYHASH_SIZE) {
            typeRet = TX_WITNESS_V0_KEYHASH;
            vSolutionsRet.push_back(witnessprogram);    //返回20字節PubKey Hash
            return true;
        }
        //長度32，說明是P2WSH
        if (witnessversion == 0 && witnessprogram.size() == WITNESS_V0_SCRIPTHASH_SIZE) {
            typeRet = TX_WITNESS_V0_SCRIPTHASH;
            vSolutionsRet.push_back(witnessprogram); //返回見證腳本
            return true;
        }
        if (witnessversion != 0) {  //向前兼容，當前隔離見證版本號只有0
            typeRet = TX_WITNESS_UNKNOWN;
            vSolutionsRet.push_back(std::vector<unsigned char>{(unsigned char)witnessversion});
            vSolutionsRet.push_back(std::move(witnessprogram));
            return true;
        }
        typeRet = TX_NONSTANDARD;  //其他情況就是非標準交易了
        return false;
    }

    //用OP_RETURN帶的一堆直推數據
    if (scriptPubKey.size() >= 1 && scriptPubKey[0] == OP_RETURN
                                 && scriptPubKey.IsPushOnly(scriptPubKey.begin()+1)) {
        typeRet = TX_NULL_DATA;
        return true;
    }

    std::vector<unsigned char> data;
    //65/33 [65/33字節公鑰] OP_CHECKSIG，33為壓縮版
    if (MatchPayToPubkey(scriptPubKey, data)) {
        typeRet = TX_PUBKEY;
        vSolutionsRet.push_back(std::move(data));
        return true;
    }

    //OP_DUP OP_HASH160 20 [20字節公鑰哈希] OP_EQUALVERIFY OP_CHECKSIG
    if (MatchPayToPubkeyHash(scriptPubKey, data)) {
        typeRet = TX_PUBKEYHASH;
        vSolutionsRet.push_back(std::move(data));
        return true;
    }

    unsigned int required;
    std::vector<std::vector<unsigned char>> keys;
    //多重簽名：<required> <A pubkey> [B pubkey] [C pubkey...] <keys.size()> OP_CHECKMULTISIG
    if (MatchMultisig(scriptPubKey, required, keys)) {
        typeRet = TX_MULTISIG;
        vSolutionsRet.push_back({static_cast<unsigned char>(required)});
        vSolutionsRet.insert(vSolutionsRet.end(), keys.begin(), keys.end());
        vSolutionsRet.push_back({static_cast<unsigned char>(keys.size())});
        return true;
    }

    vSolutionsRet.clear();
    typeRet = TX_NONSTANDARD;  //以上都不是，那就是非標準交易了
    return false;
}

Solver函數是被SignStep函數調用的。函數名意思是分步簽名，如果是P2SH，或者是隔離見證的P2WPHK/P2WSH，那么SignStep函數會調用兩次，第一次返回贖回腳本或見證腳本，第二次才能簽名。它定義在src/script/sigh.cpp里。源碼如下：

static bool SignStep(const SigningProvider& provider, const BaseSignatureCreator& creator,
                     const CScript& scriptPubKey, std::vector<valtype>& ret, txnouttype& whichTypeRet,
                     SigVersion sigversion, SignatureData& sigdata)
{
    CScript scriptRet;
    uint160 h160;
    ret.clear();
    std::vector<unsigned char> sig;

    std::vector<valtype> vSolutions;
    if (!Solver(scriptPubKey, whichTypeRet, vSolutions))    //判斷scriptPubKey類型
        return false;

    switch (whichTypeRet)
    {
    case TX_NONSTANDARD:
    case TX_NULL_DATA:
    case TX_WITNESS_UNKNOWN:
        return false;
    case TX_PUBKEY:  //公鑰，調用CreateSig生成簽名
        if (!CreateSig(creator, sigdata, provider, sig, CPubKey(vSolutions[0]).GetID(), scriptPubKey, sigversion))
            return false;
        ret.push_back(std::move(sig));
        return true;
    case TX_PUBKEYHASH: {  //公鑰哈希，調用CreateSig生成簽名，連同公鑰一并返回
        CKeyID keyID = CKeyID(uint160(vSolutions[0]));
        if (!CreateSig(creator, sigdata, provider, sig, keyID, scriptPubKey, sigversion)) return false;
        ret.push_back(std::move(sig));
        CPubKey pubkey;
        GetPubKey(provider, sigdata, keyID, pubkey);
        ret.push_back(ToByteVector(pubkey));
        return true;
    }
    case TX_SCRIPTHASH:  //腳本哈希，取出贖回腳本redeem script
        if (GetCScript(provider, sigdata, uint160(vSolutions[0]), scriptRet)) {
            ret.push_back(std::vector<unsigned char>(scriptRet.begin(), scriptRet.end()));
            return true;
        }
        return false;
    case TX_MULTISIG: {  //多重簽名
        size_t required = vSolutions.front()[0];
        ret.push_back(valtype());
        for (size_t i = 1; i < vSolutions.size() - 1; ++i) {
            CPubKey pubkey = CPubKey(vSolutions[i]);
            if (ret.size() < required + 1 && CreateSig(creator, sigdata, provider, sig,
                                                       pubkey.GetID(), scriptPubKey, sigversion)) {
                ret.push_back(std::move(sig));
            }
        }
        bool ok = ret.size() == required + 1; //簽名數量夠不夠？
        for (size_t i = 0; i + ret.size() < required + 1; ++i) {
            ret.push_back(valtype());
        }
        return ok;
    }
    case TX_WITNESS_V0_KEYHASH:  //P2WPKH，直接返回20字節Key Hash
        ret.push_back(vSolutions[0]);
        return true;
    case TX_WITNESS_V0_SCRIPTHASH:  //P2WSH，返回見證腳本（m keys n）
        CRIPEMD160().Write(&vSolutions[0][0], vSolutions[0].size()).Finalize(h160.begin());
        if (GetCScript(provider, sigdata, h160, scriptRet)) {
            ret.push_back(std::vector<unsigned char>(scriptRet.begin(), scriptRet.end()));
            return true;
        }
        return false;
    default:
        return false;
    }
}

現在可以看ProduceSignature函數了，它的源代碼如下：

bool ProduceSignature(const SigningProvider& provider, const BaseSignatureCreator& creator,
                      const CScript& fromPubKey, SignatureData& sigdata)
{
    if (sigdata.complete) return true;

    std::vector<valtype> result;
    txnouttype whichType;
    bool solved = SignStep(provider, creator, fromPubKey, result, whichType, SigVersion::BASE, sigdata);
    bool P2SH = false;
    CScript subscript;
    sigdata.scriptWitness.stack.clear();

    if (solved && whichType == TX_SCRIPTHASH)
    {   //P2SH，對子腳本（贖回腳本）二次簽名
        subscript = CScript(result[0].begin(), result[0].end());
        sigdata.redeem_script = subscript;
        solved = solved && SignStep(provider, creator, subscript, result, whichType, SigVersion::BASE, sigdata)
                        && whichType != TX_SCRIPTHASH;
        P2SH = true;
    }

    if (solved && whichType == TX_WITNESS_V0_KEYHASH)
    {   //P2WPKH，先組建P2PKH，二次簽名
        CScript witnessscript;
        witnessscript << OP_DUP << OP_HASH160 << ToByteVector(result[0]) << OP_EQUALVERIFY << OP_CHECKSIG;
        txnouttype subType;
        solved = solved && SignStep(provider, creator, witnessscript, result, subType,
                                    SigVersion::WITNESS_V0, sigdata);
        sigdata.scriptWitness.stack = result;
        sigdata.witness = true;
        result.clear();
    }
    else if (solved && whichType == TX_WITNESS_V0_SCRIPTHASH)
    {   //P2WSH，m keys n再調SignStep完成多重簽名
        CScript witnessscript(result[0].begin(), result[0].end());
        sigdata.witness_script = witnessscript;
        txnouttype subType;
        solved = solved
                 && SignStep(provider, creator, witnessscript, result, subType, SigVersion::WITNESS_V0, sigdata)
                 && subType != TX_SCRIPTHASH && subType != TX_WITNESS_V0_SCRIPTHASH
                 && subType != TX_WITNESS_V0_KEYHASH;
        result.push_back(std::vector<unsigned char>(witnessscript.begin(), witnessscript.end()));
        sigdata.scriptWitness.stack = result;
        sigdata.witness = true;
        result.clear();
    } else if (solved && whichType == TX_WITNESS_UNKNOWN) {
        sigdata.witness = true;
    }

    if (P2SH) {  //子腳本加上去
        result.push_back(std::vector<unsigned char>(subscript.begin(), subscript.end()));
    }
    sigdata.scriptSig = PushAll(result);  //填入scriptSig，注意如果是隔離見證，此前已經clear

    //最后還要驗證一下
    sigdata.complete = solved && VerifyScript(sigdata.scriptSig, fromPubKey, &sigdata.scriptWitness,
                                              STANDARD_SCRIPT_VERIFY_FLAGS, creator.Checker());
    return sigdata.complete;
}

以上就是扣丁學堂區塊鏈開發技術之探究比特幣交易簽名的詳細介紹，想要了解更多請關注扣丁學堂官網或微信公眾號，此外扣丁學堂區塊鏈視頻教程80%供學員免費在線觀看，想要學習區塊鏈的小伙伴快到扣丁學堂報名吧?？鄱W(xué)堂區塊鏈交流群：850351616。
